Description

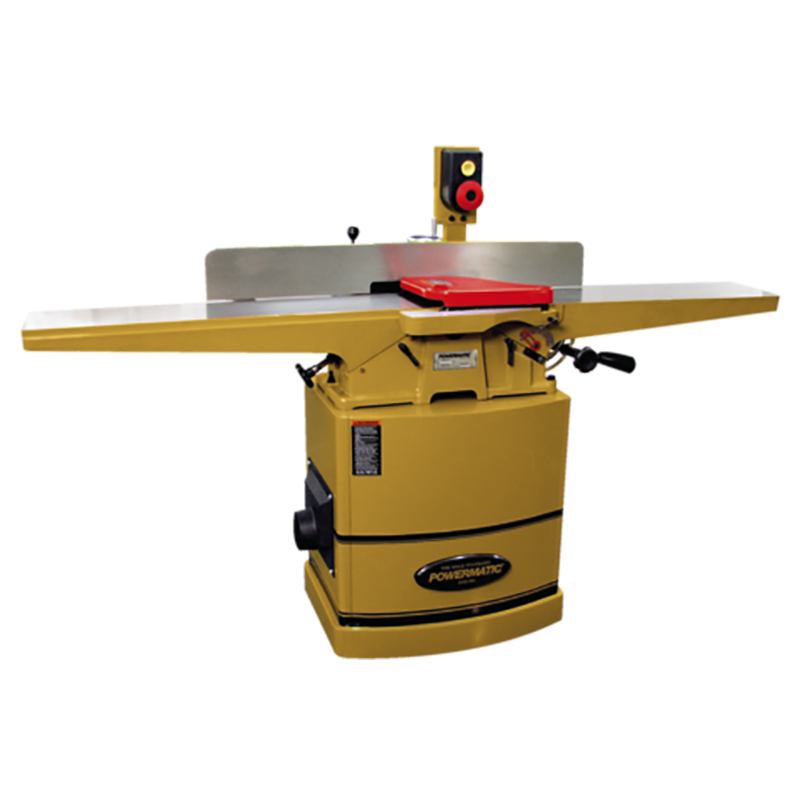

This 8-inch jointer meets the demand for accuracy while combining unique, user-friendly functions. The infeed table lever can be used to rapidly position table height, then the handle rotated for fine-adjustment of cut depth. Fence tilting is accomplished by a worm gear system, smoothly operated by a simple handwheel. The tables provide 73” long extended support. A non-mar insert in the fence protects the table from scratches during adjustments. The jointer is available with a three knife cutterhead, or a helical cutterhead with four-sided knife inserts. The operating switch is high mounted for easy reach, and the push blocks have a magnetic base – store them on any metallic surface for instant access.
FEATURES
High-speed heat-treated steel knives
Extra long tables are mounted on dovetailed ways, for extended workpiece support
Adjustment lever offers quick infeed table positioning and fine-tuning of cut depth
High mount switch for operator convenience
Handwheel operated worm gear system for smooth fence tilting
Magnetic push blocks can be stored on the machine within constant reach
Non-mar fence insert protects table surface
Large extension rest on infeed table for rabbeting
SPECIFICATIONS
Number of Knives
3
Standard Knife Size (L x W x T) (In.)
8 x 11/16 x 1/8
Cuts Per Minute
21,000
Cutterhead Diameter (In.)
3
Cutterhead Speed (RPM)
7,000
Cutting Capacity (W x D) (In.)
8 x 1/2
Table Size (L x W) (In.)
73 x 8-1/2
Table Height from Floor (In.)
32
Infeed Table Length (In.)
35-1/4
Outfeed Table Length (In.)
35-1/2
Rabbeting Capacity (In.)
1/2
Fence Size (L x H) (In.)
38 x 4-3/4
Fence Tilt (Deg.)
45 Forward, 45 Backward
Fence Positive Stops (Deg.)
45, 90, -45
Dust Collection Minimum CFM Required (CFM)
600
Dust Port Outside Diameter (In.)
4
Motor Power (HP)
2
Motor Phase
1
Motor Voltage (V.)
230 only
Motor Current (Amps)
9
Recommended Circuit Size (Amps.)
20
