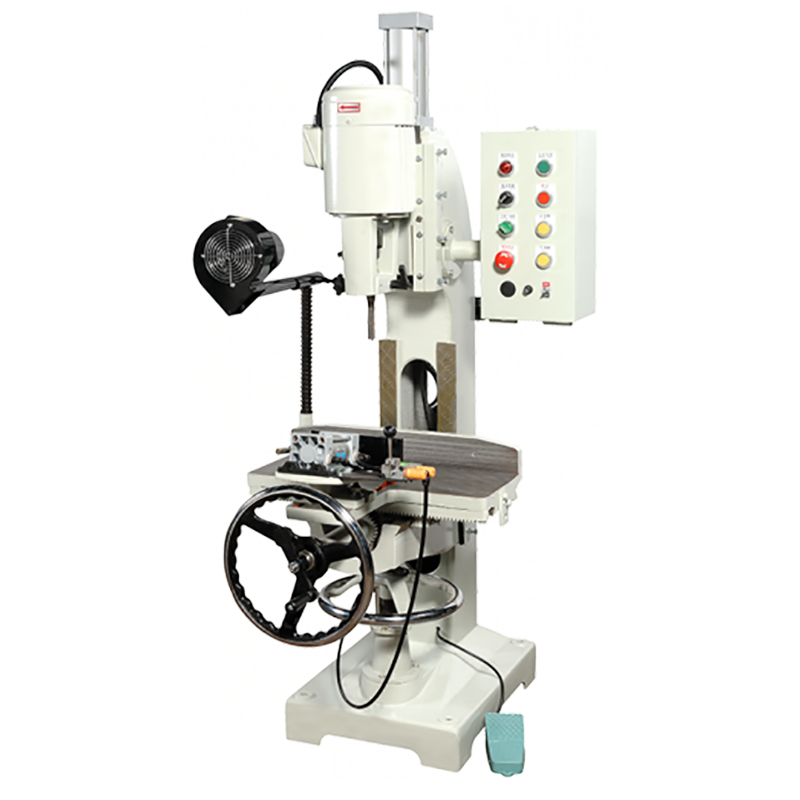

Description
Features:
- Power stroke of head permits easy, fast and accurate successive cuts.
- Separate fan blower to keep work clean and free from dust and chips.
- Manual adjustable table height and lateral position
- Heavy duty cast iron construction.
- Convenient centralized control panel
- Foot pedal actuated cycle.
- Pneumatic workpiece clamping by lever
Specifications:
| Chisel range | 1/4″~3/4″ |
| Motor | 2HP |
| Spindle speed | 3400 RPM |
| Table | 16-3/4″ x 21-1/4″ |
| Table tilts | 30o |
| Air pressure | 8KG |
| Clamping cylinder | 2.5” (63mm) |
| Head traveling cylinder | 3.15” (80mm) |
| Table cross travel | 5” |
| Table longitudinal travel | 18” |
| Table vertical travel | 12” |
| Max. stock width | 12” |
| Max. mortising depth | 4” |
| Machine weight | 572 lbs |
| Shipping weight | 726 lbs |
| Shipping dimension | 35” x 38” x 70” (880x960x1780mm) |
