Description

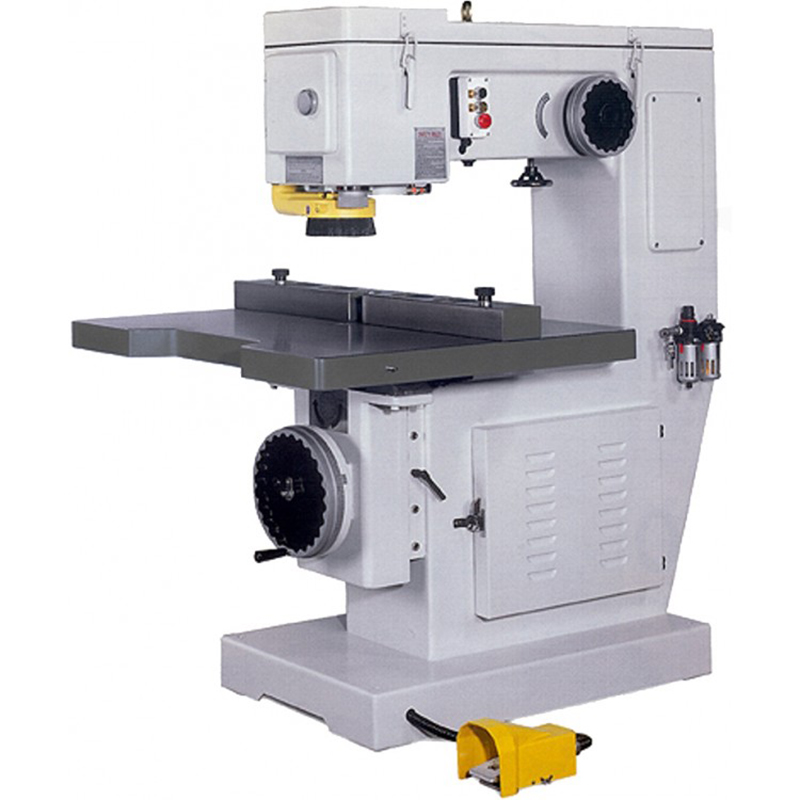

The Cantek SR-750 overarm pin router has a solid welded steel frame construction with a cast iron tilting table. The large solid table is fitted with a steel fence and the spindle to column clearance is 30”. The 7.5 HP motor drives 10,000 rpm and 20,000 rpm from a flat belt and pulley. Guide pin depth stops can be preset in 6 positions and are easily changed from the machine face.
- 7.5 HP motor
- 220 volt 3 phase 60 cycle operation – 2 speed motor
- 0 – 45° tilt
- 3 5/8” spindle travel
- 10,000 and 20,000 rpm spindle speed
- ¼”, 5/16”, 3/8”, ½”, 5/8” collets
- 3 turret depth stop
- 29 ½” distance from spindle to column
- 35 ½ “ x 39 3/8” table
