Description

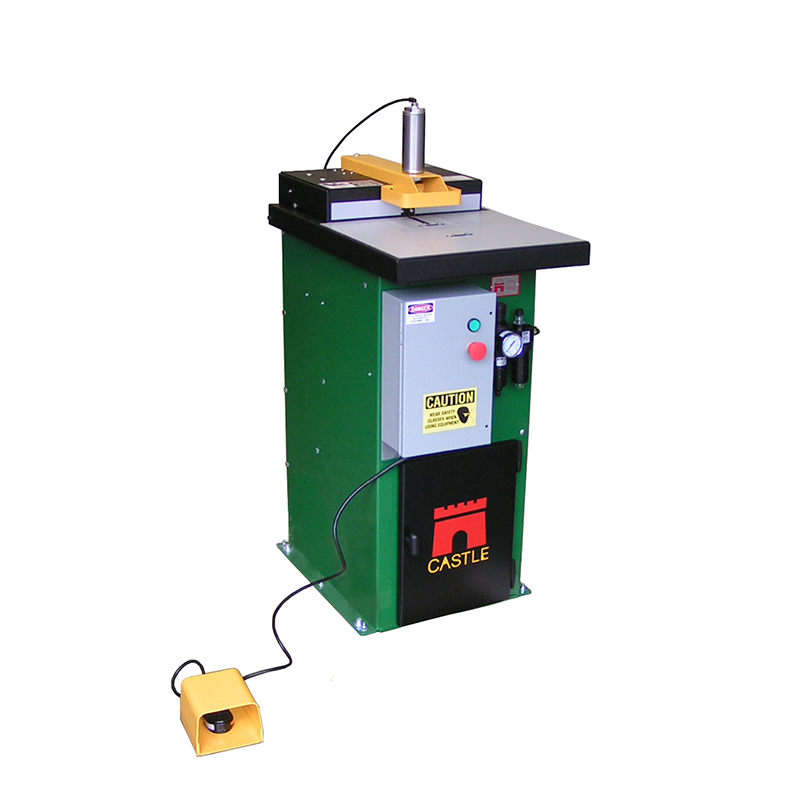

The TSM-35 pocket cutter machine, cuts the same patented six-degree Castle Pocket as the TSM-22.This heavy duty machine is designed for continuous operation in furniture plants, mobile home factories, multi-shift cabinet production and various other production facilities. A heavy duty, three-phase induction motor drives the pocket cutting spindle and is available in 208v, 230v or 460v. A specially-designed, high-torque, heavy-duty air motor drives the pilot bit.
The TSM-35 features heavy duty construction throughout with easy, top-down access for quick router and drill bit changes. Adjustable Indexing Stops are built into the top for quick part transitions during high production shifts. This pocket hole cutter can produce more than a quarter million pockets per month for years on end with minimal maintenance.
Technical Specifications:
-
Router: 1.5hp Baldor Router Motor
-
Router bit: premium 3/8″ solid carbide, Rough Mill
-
Drill: Sioux SDG10S25FCT air motor
-
Drill bit: 9/64” Brad and Spur Premium TiN-Coated Bit
-
Power req: Three-phase 230v, 460v
-
Air req: 85 psi—external regulator, filter and lubricator included
-
Basic footprint: 21″ depth x 19″ width
-
Working height: 36.5″
-
Worktop usable area: 16″ depth x 18.5 width
-
Machine height: 38”
-
Shipping weight: Approx 360 lbs
-
Shipping dimensions: 28″ x 24″ x 48″
- price does not include freight
