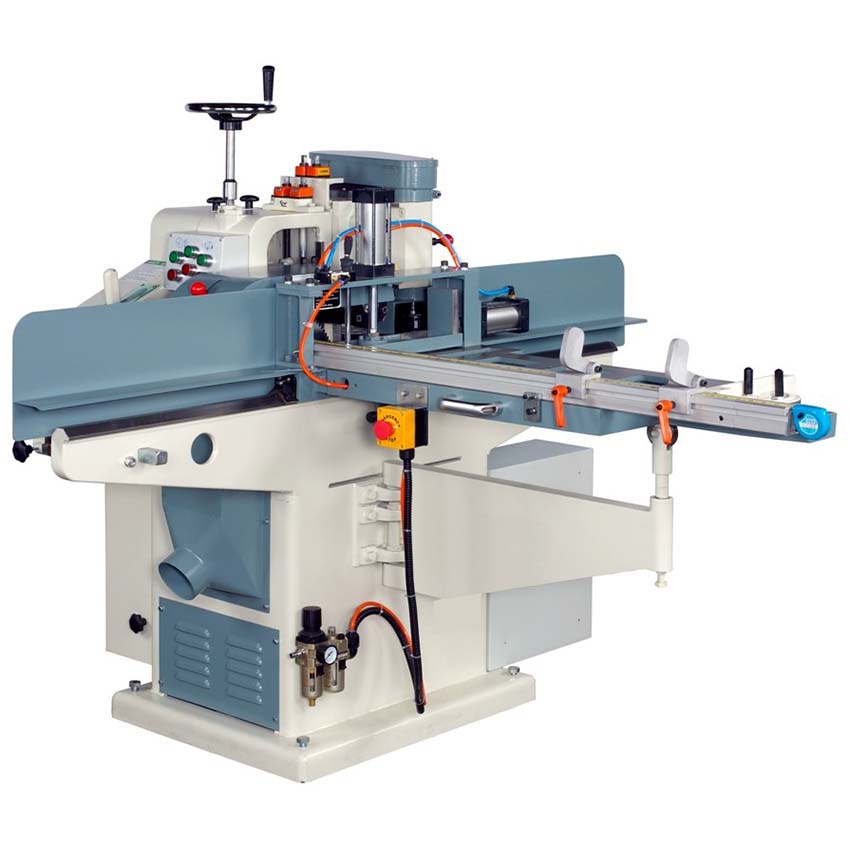

Description
Features
5 heads
Net Weight 600kg (1,320 lbs)
CSA Telemecanique switches
230 Volt 2 Phase 60Hz
Cut off Saw
12″ dia. driven from tenon heads
1 1/4″ shaft dia. x 6″ long
2800 RPM
Saw position moved by changing spacers
Top & Bottom Heads
Carbide insert spiral tenon heads
1 1/4 dia. spindle
152 mm (6″) long x 127mm (5″) thick tenons heads. Spiral with carbide insert tooling
(1) 7.5HP motor
3400 RPM
14 mm square carbide tips on end of cutterheads to produce clean cut shoulder
1″ lateral adjustment of tenon heads
2 X Cope Spindle Vertical Top & Bottom
1 1/4″ dia. spindle, 6000 RPM
(2) 5 HP motors
Max. dia. tooling 6 3/8″
2-3/4″ length of spindle
Independent adjustment each head
2 x 4 wedge typer cutterheads included
Counterbore locknut allows both heads to move close together
Sliding Table Carriage
Pneumatic holddown clamp for clamping work pieces onto traveling table
Table size 50″ long x 17″ wide
OPTIONS INCLUDED
Saw blade, spiral insert knife cutterheads, (2) cope cutterheads
Electrics 230/3/60 = 42 full load amps
