Description

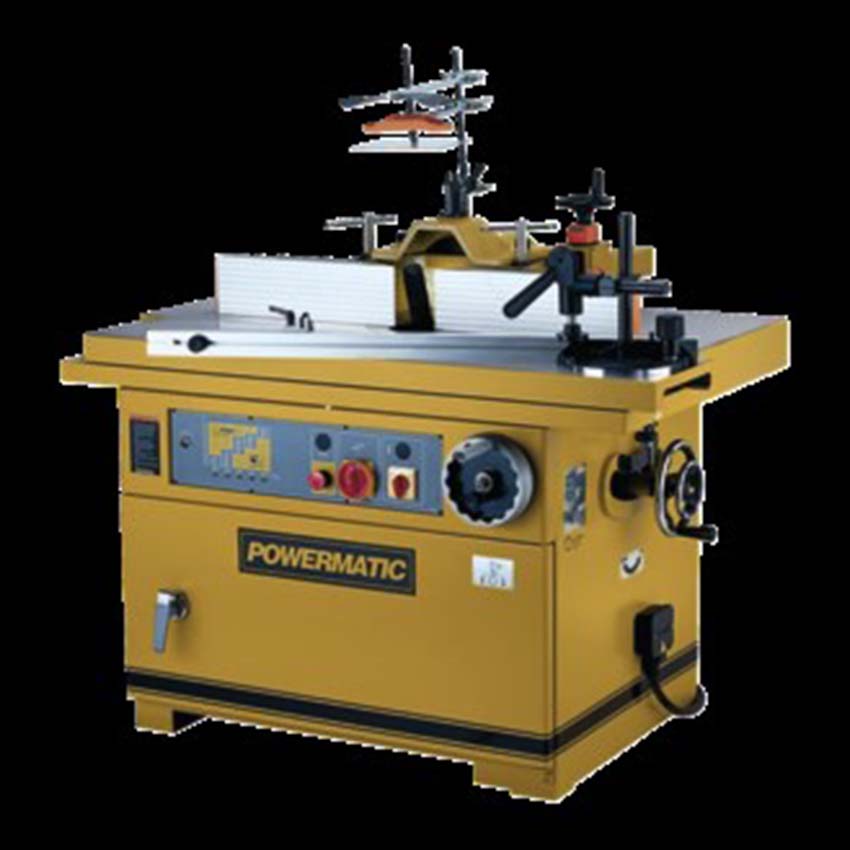

Powermatic TS29 SHAPER,7.5HP3PH 230/460V
The new TS29 Tilt/Slide Shaper is ready to tackle any job. A new fence design includes dual digital readouts, micrometer adjustments and independently adjustable fence halves for fast, accurate set- ups. The full guard includes two stock hold-downs and a see- through cover that flips up for quick tool changes. Dual dust collection ports, in the guard and under the table insure a clear work area and improved finish. An extra-large quill assembly with a full seven inch stroke has three oversize bearings and the ability to tilt, adding versatility and insuring long, trouble-free performance.
Powered by a big 7-1/2HP motor that drives the spindle forward and reverse with five speeds. The massive sliding table is fully supported by six tapered precision bearings through a full four-foot stroke. In addition, on board the table is a large miter head complete with stock hold-down clamp and a 56″ miter fence with flip stop. The large table can easily accommodate a stock feeder for longer production runs.
FEATURES
- Sliding table with 4-foot stroke works with miter head, hold- down and fence to accommodate everything from multiple end cuts to tenons
- Fully adjustable fence with dual digital readout for fast, accurate set-up and repeatability
- Large table with built-in slider with room for stock feeder 7″ vertical spindle travel allows stacked tooling
- Spindle tilts negative 5° to positive 45° for increased
- versatility
- Large diameter multiple table inserts accommodate virtually any size cutter
- Five spindle speeds in forward and reverse with lighted indicator
| Style (Type) |
Shaper |
| Spindle Speed (RPM) |
3,000, 4,000, 6,000, |
|
|
| Maximum Spindle Diameter (In.) |
1-1/4 |
| Spindles Included |
3/4, 1, 1-1/4 |
| Spindle Size Under Nut (In.) |
3/4 (3-1/2), 1 (6), 1- |
|
|
|
| Spindle Travel (In.) |
7 |
| Spindle Tilt (Deg.) |
45 Forward, 5 Back |
| Reversible |
Yes |
| Router Bit Collet Included |
1/4, 1/2 |
| Maximum Diameter Cutter Above Table (In.) |
12 |
| Maximum Diameter Cutter Below Table (In.) |
9 |
| Table Inserts (In.) |
2-1/5, 5-1/2, Oval |
|
|
|
| Table Size (In.) |
51-1/2 x 33-1/2 |
| Table Travel (In.) |
49-1/4 |
| Sliding Table Size (In.) |
11-1/4 x 51-1/4 |
| Fence Size (L x H) (In.) |
46 x 5 |
| Fence Travel (Major and Minor) (In.) |
5-3/8, 3-5/8 |
