Description

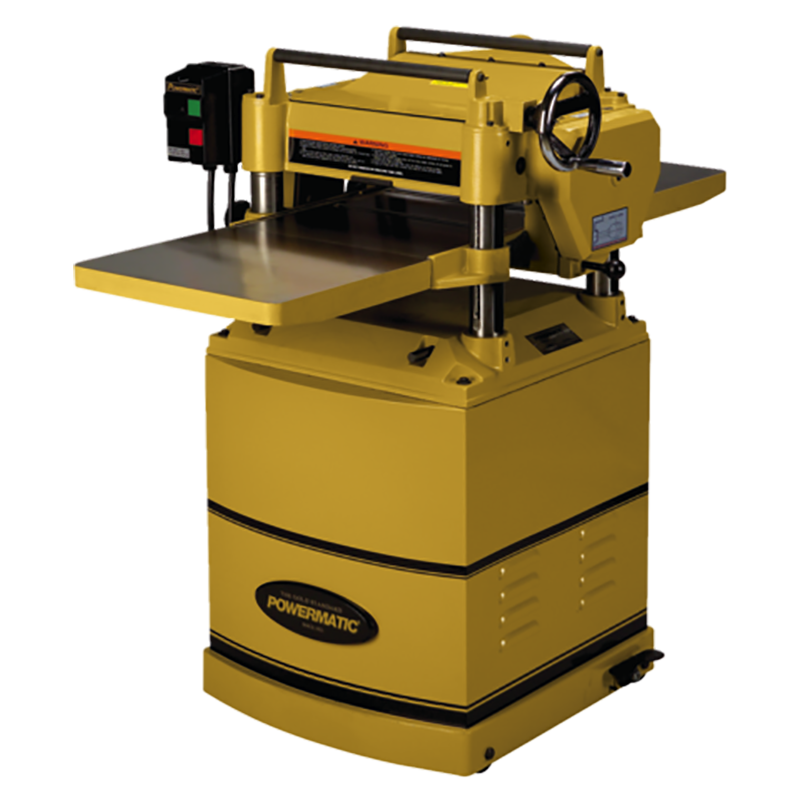

The helical cutterhead on this planer provides smoother cutting and a finer finish than conventional knives, and the 74 four-sided indexable carbide knife inserts do not require adjustment after installing. Three V-belts transfer maximum power from the 3HP motor to the cutterhead. Your workpiece will get substantial support from the precision ground cast iron table and two large extension wings. The 4″ dust port angles the collection hose away from the work area. Stock return rollers atop the machine speed repetitive cuts. The serrated steel infeed and smooth steel outfeed roller allow for 1/8″ maximum depth of cut and trouble-free operation. A 2-speed gearbox features an automatic chain tensioner. The one-piece welded steel stand has built-in lockable casters for easy movement around the shop.
FEATURES
The helical cutterhead with 74 four-sided knife inserts provides smoother, quieter cutting and finer finish than conventional systems
Powerful 3HP TEFC motor controlled with a magnetic switch for safety
Three V-belts transfer maximum power to the cutterhead
Serrated steel infeed roller and smooth steel outfeed roller allow for 1/4″ maximum depth of cut and trouble free operation
Large cast iron handwheel positions table quickly and easily
Large, precision ground cast iron table and extensions provide maximum workpiece support
Two speed gearbox features automatic chain tensioner
One-piece welded steel stand has built-in lockable casters
Steel top-mounted return rollers speed repetitive cuts
Angled dust chute with 4″ port positions collection hose away from the work area while providing efficient chip and dust collection
Table locks firmly in place, preventing movement during cutting
Standard Equipment:
3HP TEFC motor with magnetic controls
Closed stand with built-in casters
4″ diameter dust port
Cast iron extension tables
SPECIFICATIONS
Type of Cutterhead
Helical
Knife Size (L x W x T)
15 x 15 x 2.5
Cutterhead Speed (RPM)
4,500
Cutterhead Diameter (In.)
2-7/8
Maximum Depth of Cut (In.)
1/4
Maximum Full Width Depth of Cut (In.)
1/8
Maximum Planing Width (In.)
14-7/8
Maximum Planing Thickness (In.)
6
Minimum Planing Length (In.)
8
Infeed Roller Diameter (In.)
2.07
Segmented Infeed Roller Diameter (In.)
2.07
Outfeed Roller Diameter (In.)
2.07
Bed Rollers Adjustable from Front
N.A.
Table Size with Extensions (L x W) (In.)
15 x 48
Column Diameter (In.)
2-3/16
Dust Collection Minimum CFM Required (CFM)
800
Dust Port Outside Diameter (In.)
4
Motor Voltage (V.)
230 only
Recommended Circuit Size (Amps.)
30
