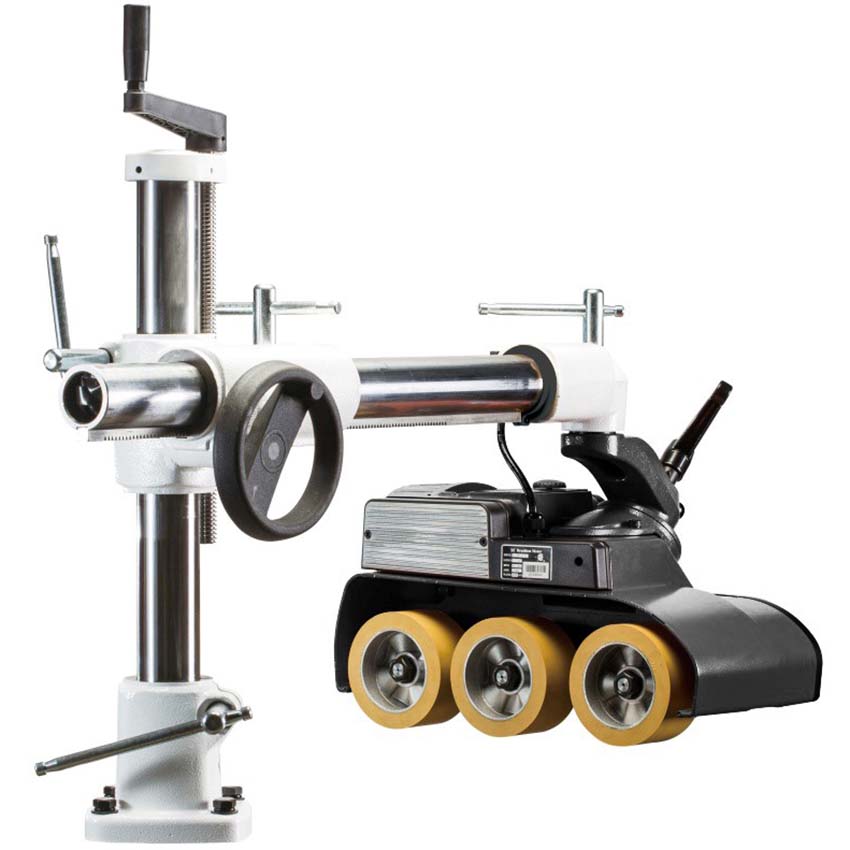

Description
FEATURES:
1/2 HP DC Brushless Servo Motor
-High Efficiency = more power, more torque!
– Saves over 50% power output than other feeders of the same size
3 Rollers
Variable speed 2-22 M/min (7-72 FPM)
Forward/reverse feed
Included US13 Heavy Duty Universal Stand
Optional Dual Rollers for saw clearance
SPECIFICATIONS
Voltage: 100-120V / 1 Phase
200-240V / 1 or 3 Phase
Roller Size: 120 x 60mm (standard) / 120 x 25mm (optional)
Roller: 3
Feeding Speed: 2-22 M/min (7-72 FPM)
Max. Power Output: 400W
Horse Power: 1/2 HP
Packing Size: Body- 588 x 326 x 306 mm (23″ x 12 3/4″ x 12″)
Stand- 770 x 320 x 290 mm (30-3/8″ x 5/8″ x 11 1/2″)
Machine Weight: 23 kg (51 lbs)
30 kg (66 lbs)
Shipping Weight: 25 kg (55 lbs)
32 kg (72 lbs)
