Description
Features:

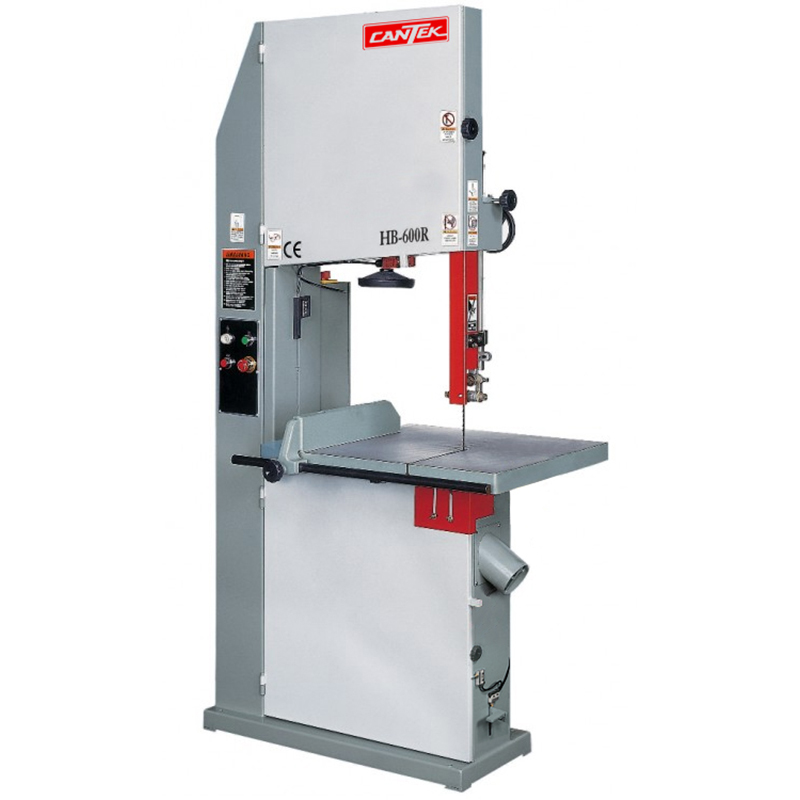

- Production 24″ bandsaw
- Heavy gauge steel frame ensures stable & vibration free cutting
- Rack & pinion guide adjustment
- Saw wheels are laminated with rubber for accurate blade tracking
- Table is made of cast iron & surface is precision ground
- Table tilts to 45° for bevel cuts
- Convenient blade tension adjustment by a handwheel
- Cast iron top & bottom wheels are precision machined & dynamically balanced
- Foot brake
- Ball bearing upper & lower guides guides
Specifications:
| Saw wheel diameter | 24″ |
| Motor | 3HP |
| Table Size | 31-1/2″ x 23-7/8″ |
| Table Tilting | 0 ~ 45o |
| Throat Capacity | 22-7/8″ |
| Height Capacity | 13-3/4″ |
| Width of wheel | 1.38″ (35mm) |
| Blade Speed | 4458 FPM |
| Blade Length | 173-5/8″ ~ 176-3/8″ |
| Blade Width | 1/4″ ~ 1-1/4″ |
