Description

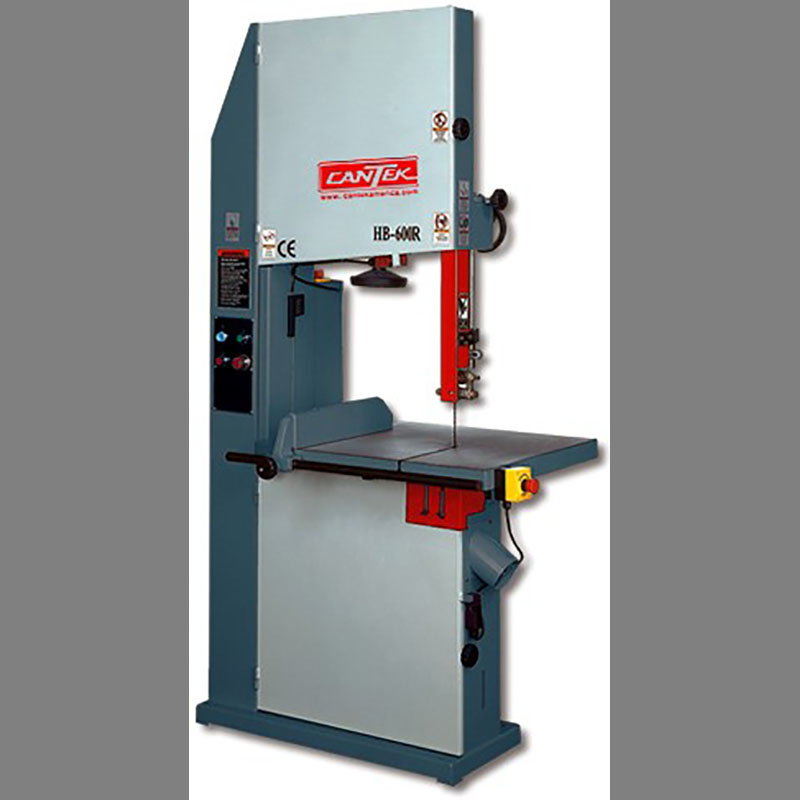

This Cantek bandsaw includes single phase three HP motor for sufficient power to handle a variety of cutting of jobs. You can also use it to produce bevel cuts because the table tilts at a 45 degree angle. To help with your cutting production, this bandsaw is fitted with effective woodworking device features such as rack and pinion, ball bearing guides, foot brake and a handwheel. Blade tracking is even more accurate because of its laminated with rubber saw wheels. This woodworking bandsaw is a cost-efficient investment because its construction is built for heavy-duty cutting use.
Specifications
Saw wheel diameter 20″
Motor 3HP
Table size 26 ¾” x 20 ½”
Table tilting 0 – 45 o
Throut capacity 18 ¾”
Height capacity under guide 11-7/8″
Width of wheel 1.38″ (35mm)
Blade speed 4450 FPM
Blade length 156 ¼” ~ 157 ½”
Blade width ¼” ~ 1 ¼”
Dust hood dia. 4″
Net weight 616 lbs.
Shipping weight 770 lbs.
Machine dimensions 38.2″ x 27 ½” x 74″
Shipping dimensions 77 ½” x 22.8″ x 39 ¾”
Electrical 230/1/60 = 17 Full Load Amps
230/3/60 = 9.6 Full Load Amps
