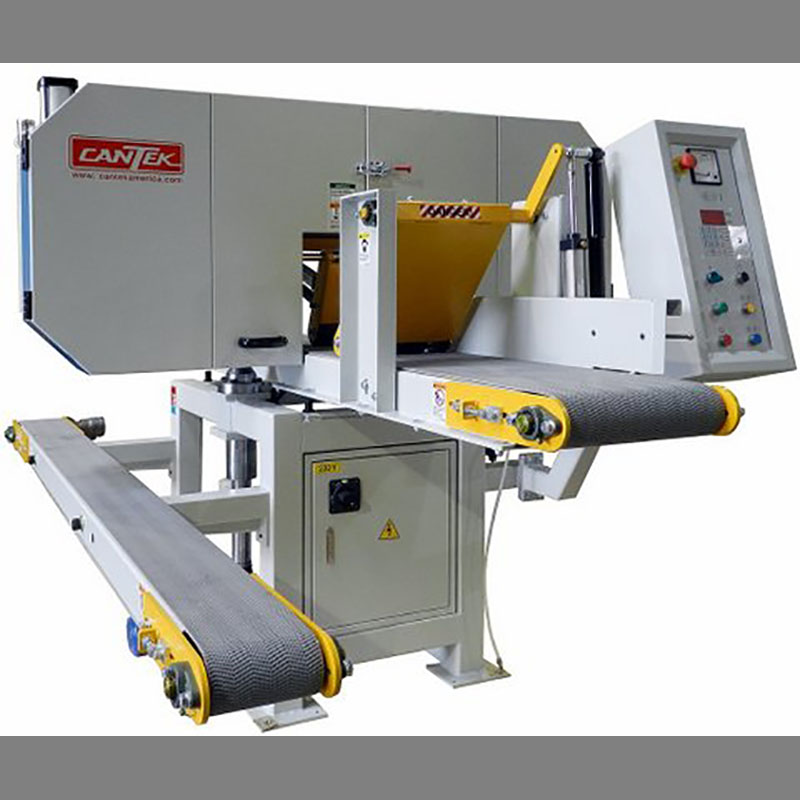

CANTEK HR400PB Single Head Horizontal Band Resaw
Features
- Extra heavy duty welded tubular frame
- Solid steel bandwheels are precision machined and dynamically balanced
- Bandmill Tensioning by air over oil system
- Digital thickness control in Metric and Inch for precise adjustment of the band height
- Saw assembly is raised and lowered by anti-backlash re-circulating ballscrews
- Heavy duty hydraulic feed system with variable speed control
- Pneumatic top pressure roller automatically adjusts to the workpiece thickness
- New Low Friction sandwich type saw guide system with adjustable left guide to minimize the distance between the guides for higher cutting precision
- Mist Bandsaw Blade Lube & Cooling System included –increasing feed seeds, accuracy and life of the blade
- Hydraulically driven return conveyor for returning material to the operator requiring additional resawing
- Centralized control panel for operator convenience
- An amp meter is located on the control panel for load monitoring
- Hinged blade covers allow for full access to the band wheels for convenient blade changing
- Y Delta – Low amperage Starters on the Bandmill motor
- Stock Machine Electrics 460/3/60 to UL/CSA Standards (Other voltages available on request)
Specifications
Max. working capacity (W x H) 15 3/4″ x 9.8″ 400 x 250mm
Distance from blade to conveyor 0.157″ ~ 9.8″ 4~250mm
Saw wheel diameter 28″
Saw wheel width 2”
Feed speed: variable 13~90 FPM 4~25 m/min
Saw wheel motor 30 HP – Voltage 460/3/60 (Other voltages on request)
Dust hood outlet 4″ x 2
Saw blade size 180″ x 2″ 4570 x 54mm
Conveyor belt size 15.16″ x 215.4″ 385 x 5470mm
Elevation motor 1/4 HP
Machine dimensions (LxWxH) 110″ x 85″ x 74″ 2780x2150x1880mm
Shipping dimensions (LxWxH) 113″ x 89″ x 81″ 2870x2260x2050mm
Machine weight 3960 Lbs. 1800 kgs
Shipping weight 4400 Lbs. 2000 kgs
